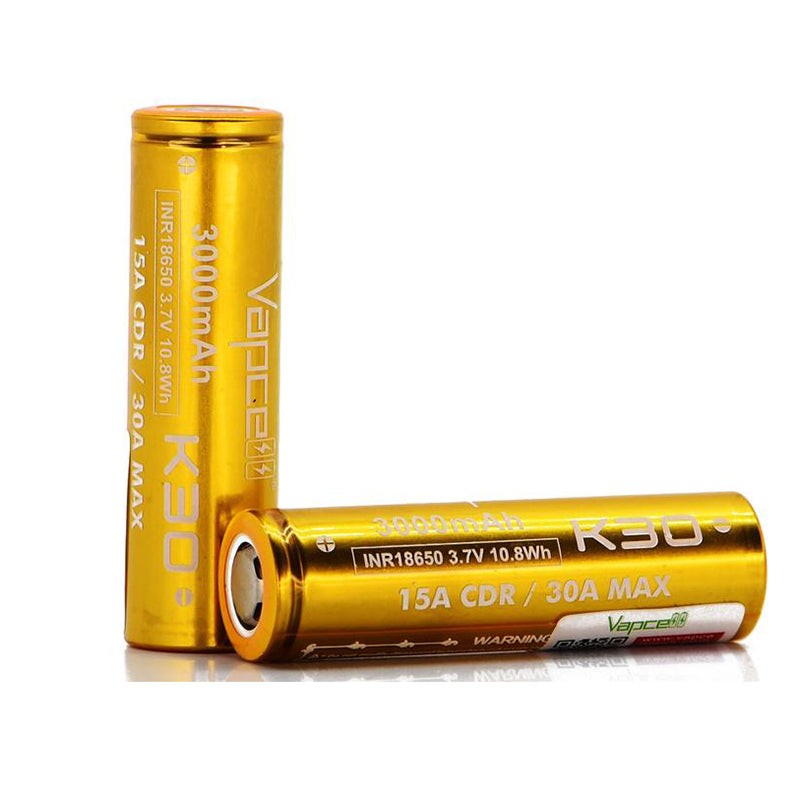

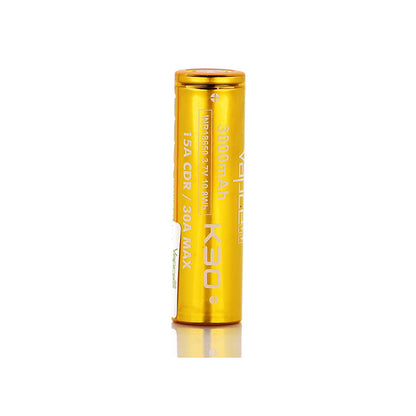

Vapcell K30 18650 15A/30A Flat Top 3000mAh Battery

Vapcell K30 18650 Battery features a 3000mAh nominal power capacity. This battery has a nominal voltage of 3.60V and charges via a CC/CV at 4.20V ± 0.05V with a cut-off of 150mA and offers standard charging at 800mA taking 180 minutes, and rapid charging at 3000mAh within 100 minutes. It operates safely between temperatures of -20 °C to 60 °C and can be charged within 0 °C to 45 °C. The Vapcell K30 is unprotected, without a Protection Circuit Board (PCB), and designed for high-performance applications.

• Nominal Capacity: 3000mAh

• Min. Rated Capacity: 2950mAh

• Battery Size: Ø18.10mm x 65.00mm

• Nominal Voltage: 3.60V

• Charging Metod: CC/CV 4.20V ± 0.05 V, 150mA Cut Off

• Discharge Voltage: 2.50V (Average Cut Off)

• Standard Charging Current CC: 800mA / 180 min

• Rapid charging Current: 3000mAh / 100 min

• Charging Temperature: 0 ° to 45 °C

• Operating Temperature: -20 ° to 60 °C

• Continuous Discharge Current: 15A

• Max. Short Pulse Discharge: 30A

• Weight: 48 gr. max

• Color: Gold

• Continuous Discharge Current: 15A

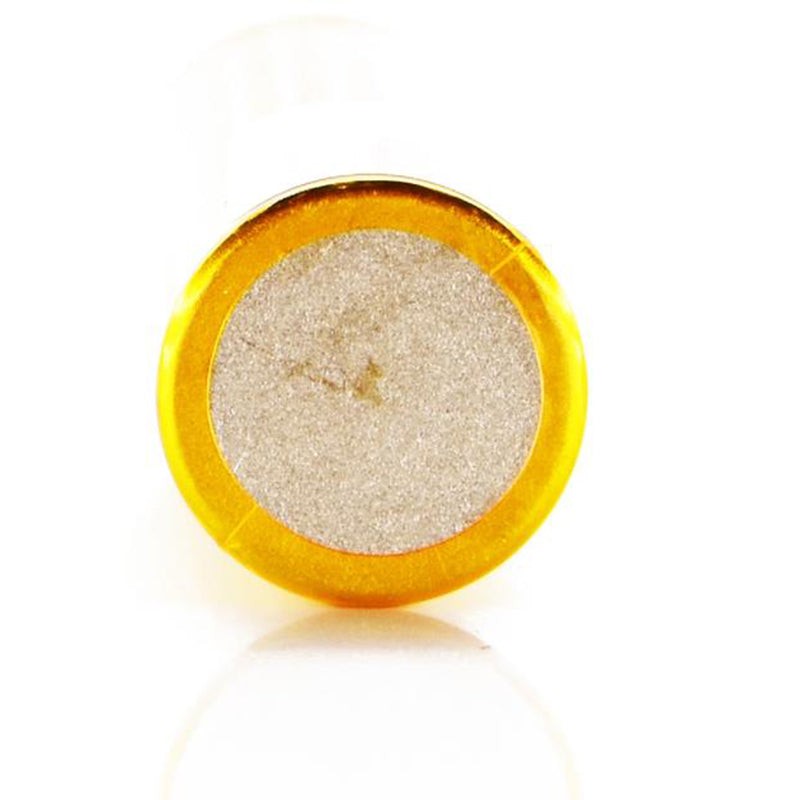

• Version: Flat Top

• Protection Circuit Board / PCB: No/ Unprotected

Brand: Vapcell
Category: Battery Cells

ORDERING TIPS
Attention: As the manufacturer needs the serial number to provide a replacement, we highly recommend you keep the original packing box or take a picture of the code before discarding it. Thank you!
